The Art of Tone

(4) TAOT CTS 500K SHORT SPLIT Shaft Potentiometers + (2) Orange Drop .022uf Capacitors

(4) TAOT CTS 500K SHORT SPLIT Shaft Potentiometers + (2) Orange Drop .022uf Capacitors

Regular price $21.99 USD
Regular price Sale price $21.99 USD
Sale Sold out
Shipping calculated at checkout.

We’ve gathered up the best in name-brand guitar electronics to provide you with a high quality, ready-to-go kit for upgrading your guitar or bass! This kit should accommodate any dual humbucker or similar 4 pot setup.

- Features -

Legendary names -  We offer high quality parts to ensure your guitar will sing for years to come! CTS and Orange Drop gathered together to provide the ultimate kit!

Custom Spec’d TAOT 500k pots @ 10% tolerance - Our own custom spec pots with a tight tolerance to give you the sound you deserve!

All hardware included - No need to run to the hardware store!

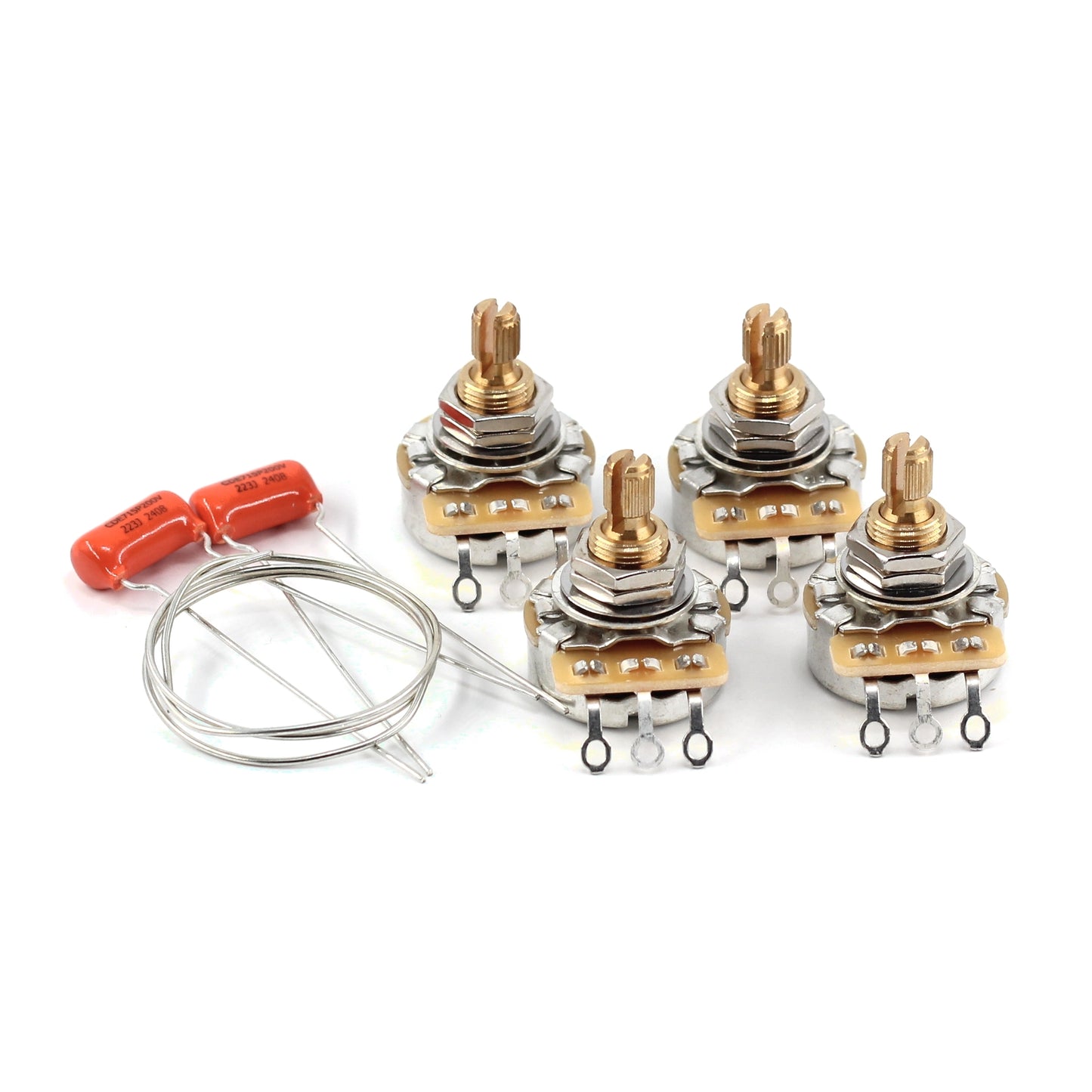

- What’s Included -

4x TAOT CTS 250K Pot 1/4” Short Solid Shaft Audio Taper Vintage Dish Back

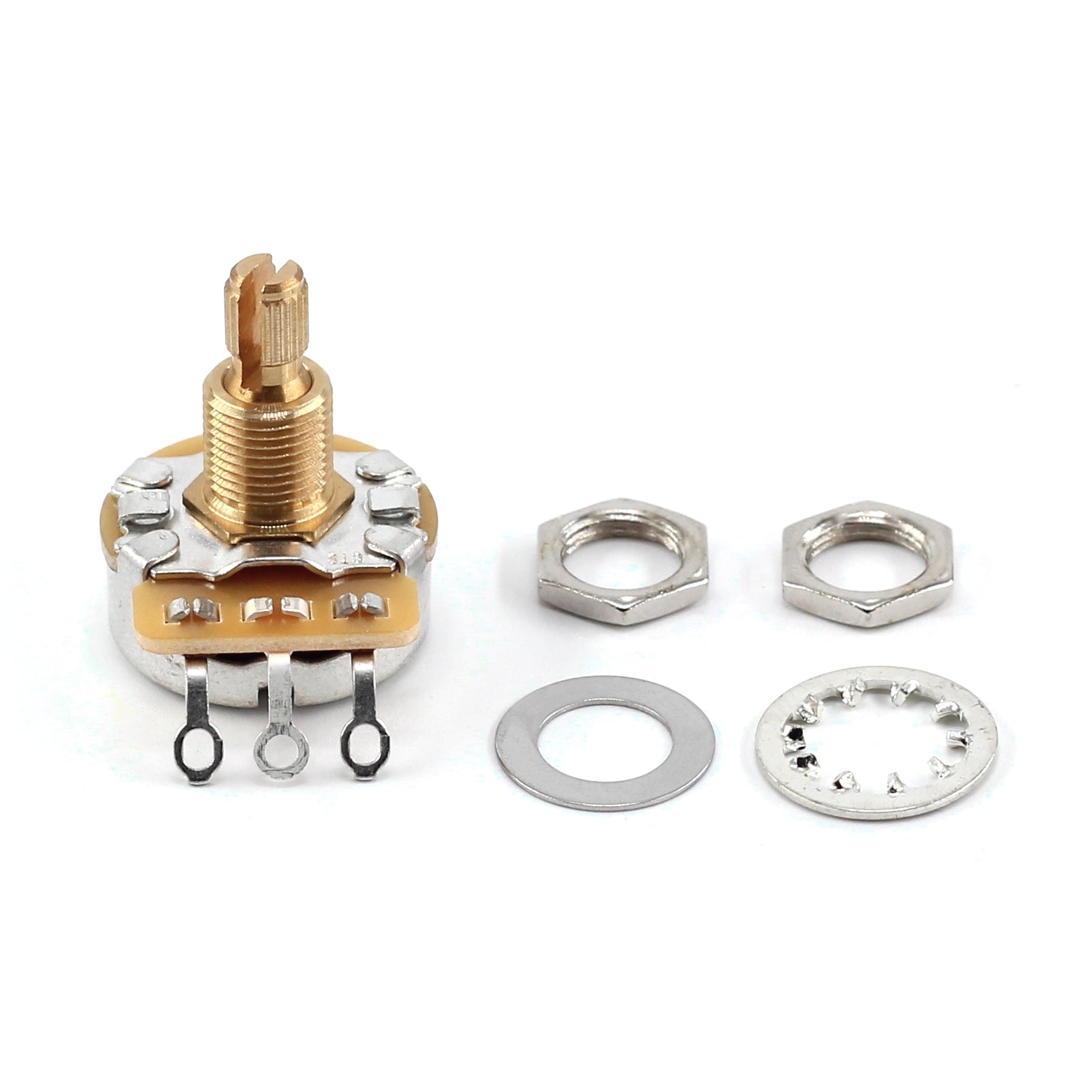

Each pot comes with hardware - 2 nuts, a dress washer, and lock washer. Everything you need to get the perfect, secure fit!

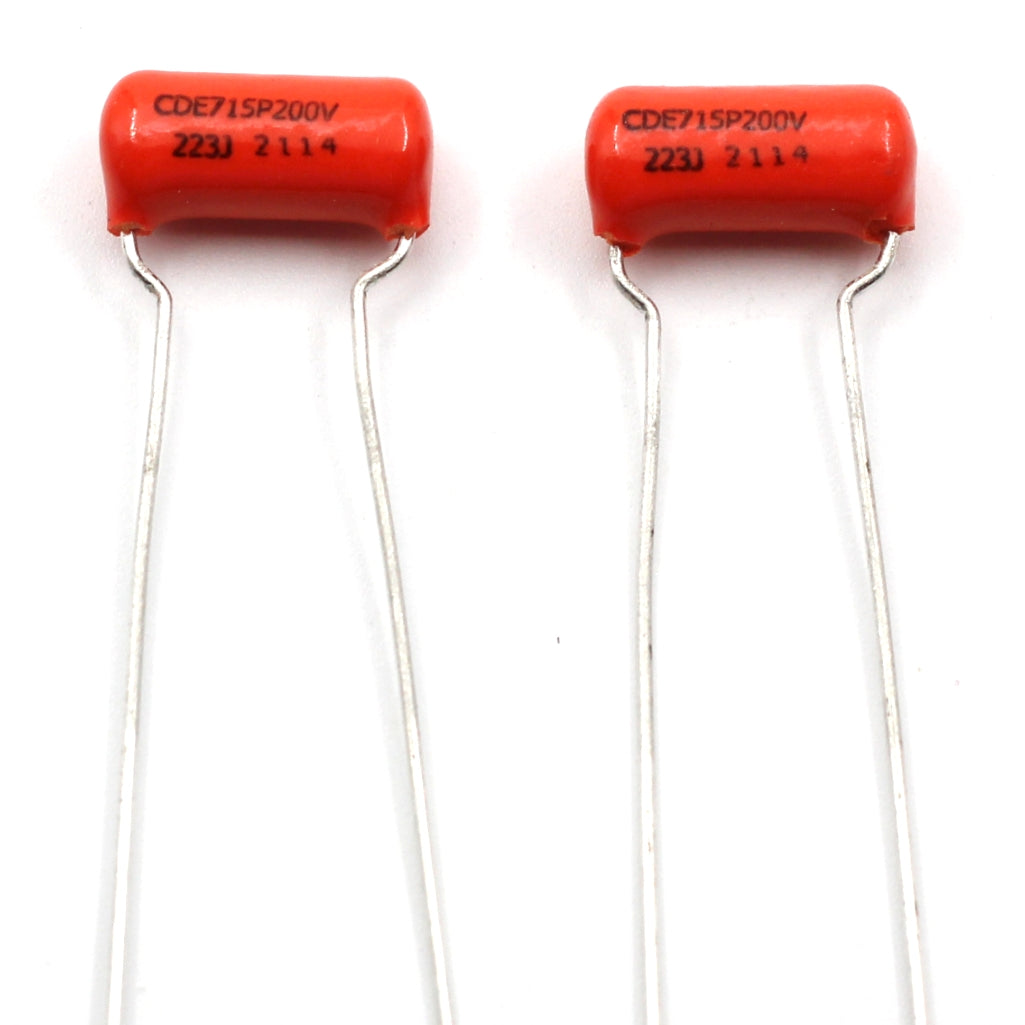

2x Orange Drop .022uf 200V Guitar Tone Capacitor 5% Tolerance 715P Series

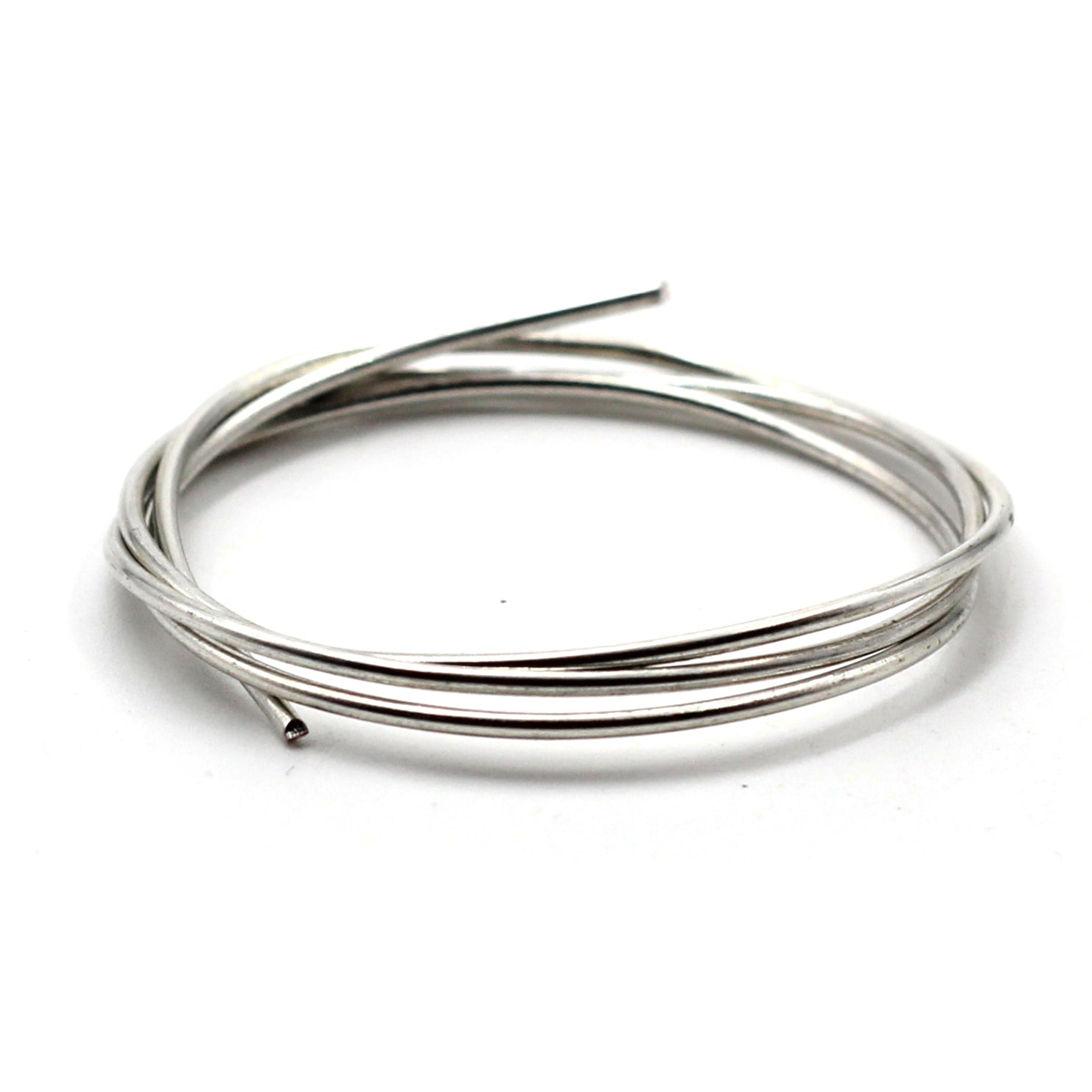

14” 18awg Tinned Copper Buss Wire

- Specifications -

Potentiometer:

500k Ohm (Ω) resistance - The gold standard for humbucker pickups.

±10% Tolerance - Ensures you get the intended tone you’re expecting from your pot.

Audio Taper - Mimics how humans perceive sound for a smooth transition throughout the entire range of motion.

Standard friction rotation - Ensures your settings stay put for enduring an active performance onstage or making smaller, gentler adjustments.

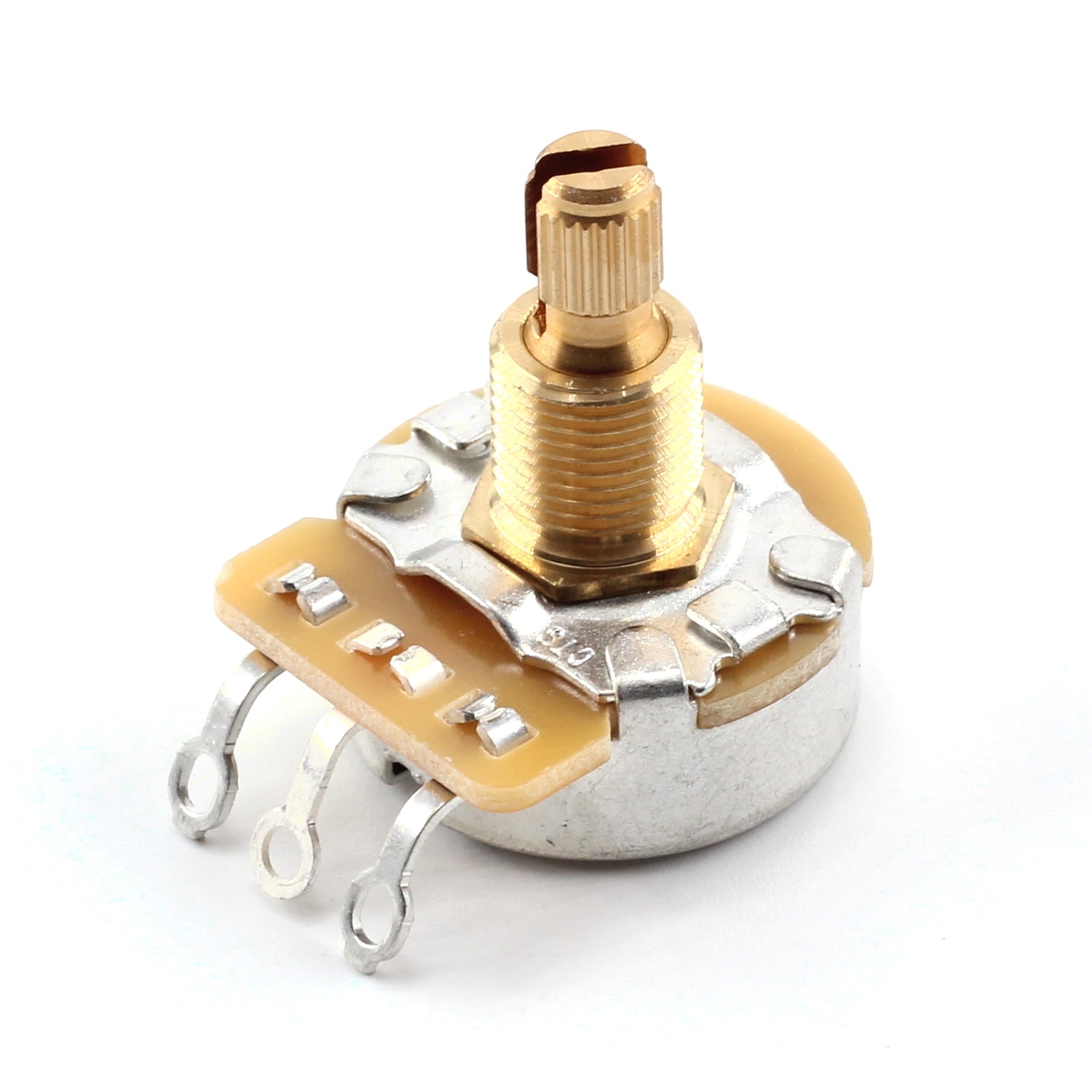

Split, 24-tooth, Fine knurled, .236" (6mm) diameter shaft - Standard fit for US knobs. Import knobs will not fit!

Short Shaft 3/8" (9.5mm) length solid brass bushing - Will fit all control plate setups and thinner top woods (Teles, Strats, SGs, some thinner Les Pauls)

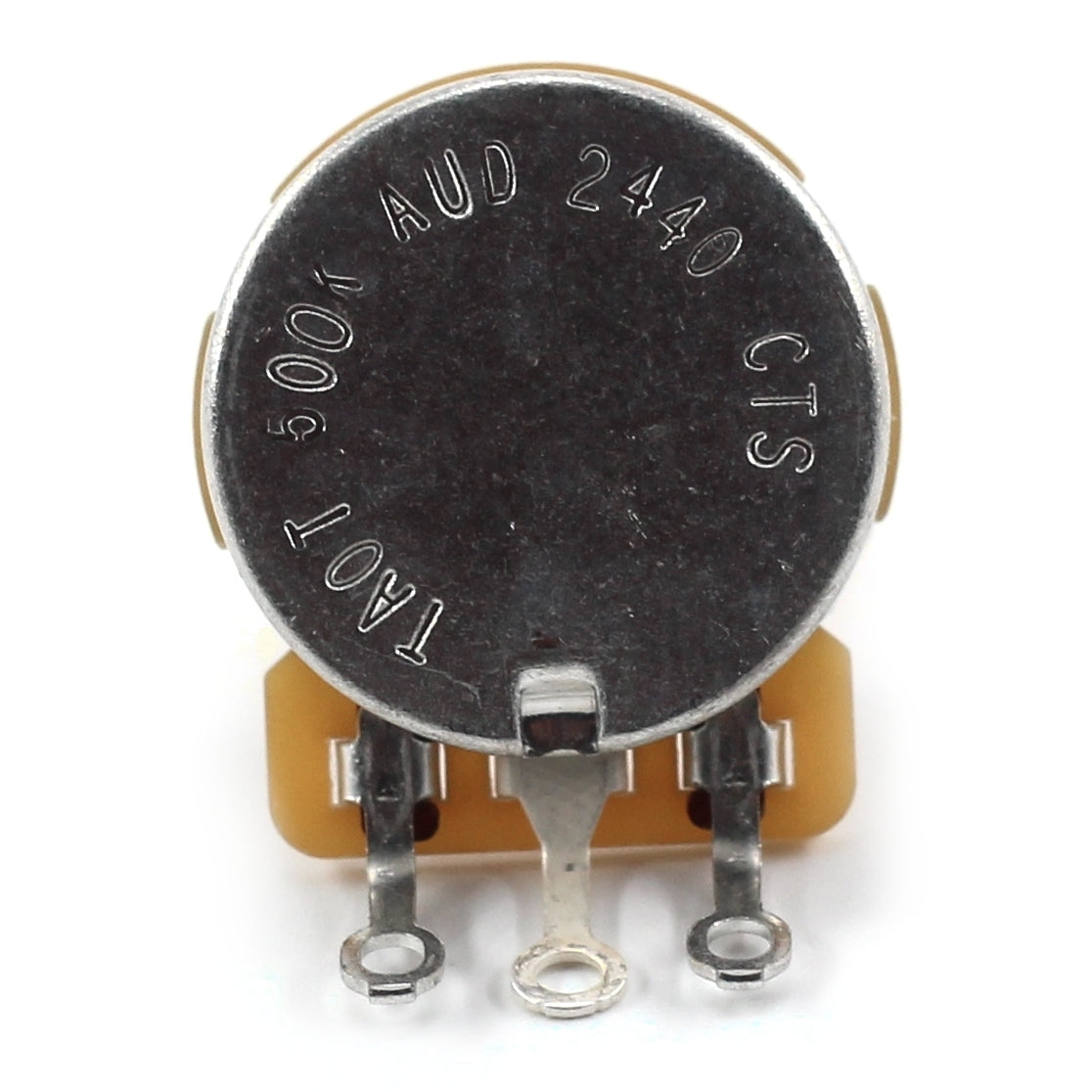

Crystal Clear Stamping - Know exactly what your pot is at a glance! No need to meter or decipher complicated part numbers to know what you’re working with.

Compatible Mounting Hole - Requires 3/8" (9.5mm) diameter mounting hole.

Capacitor:

.022 microfarad capacitance - A mild capacitance value to help chill only the harshest highs without modifying your guitar’s melodious mids.

200V voltage rating - Overkill for guitar circuits, but provides peace of mind for long-lasting performance.

±5% Tolerance - Ensures you get the intended tone you’re expecting from your cap.

Compact cylindrical design - Allows the cap to fit into nearly all control cavities or configurations.

Tinned copper-clad steel leads - Extremely durable and flexible to adjust to any setup.

2” Tinned copper-clad steel leads - Long leads will help accommodate any wiring setup, big or small!

Buss Wire:

18awg Solid-core wire - Able to safely handle any guitar grounding need.

Completely pre-tinned length - The entire length of the conductor is pre-tinned. No special preparation needed; anywhere you cut is ready to solder!


PLEASE NOTE:

Note the bushing height - These 3/8" pots are short shaft but are slightly taller than some 1/4" bushing 250k pots, which enhances their compatibility with various guitar models. We include an extra hex nut with each pot to help you dial in the perfect height during installation.

Make sure your guitar has compatible mounting holes - If you are using import guitar, you will need to drill or ream mounting holes wider to fit these pots. Import guitars (e.g., Epiphone, Ibanez, PRS SE models, ESP) typically have metric holes around 1/4" in diameter, while these pots require 3/8" diameter holes.
