Deluxe Wiring Kit for Stratocaster® - Oak Grigsby 5-Way, .022 Orange Drop

We’ve gathered up the best in name-brand guitar electronics to provide you with a high quality, ready-to-go kit to upgrade your Stratocaster! This kit should accommodate any US-made Stratocaster® or triple single-coil pickup setup with 5-way blade switch.

- Features -

• Legendary names -  We offer high quality parts to ensure your guitar will sing for years to come! CTS, Gavitt, Oak Grigsby, and Orange Drop gathered together to provide the ultimate kit!

• CTS 250k pots @ 10% tolerance - A trusted name in sound at a tighter tolerance gives you consistent sound you can rely on!

• All the wire you need - Includes everything you need to connect your parts easily and safely. Tinning on all the wire makes soldering a breeze.

• All hardware included - No need to run to the hardware store!

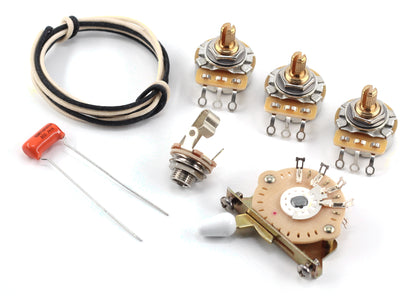

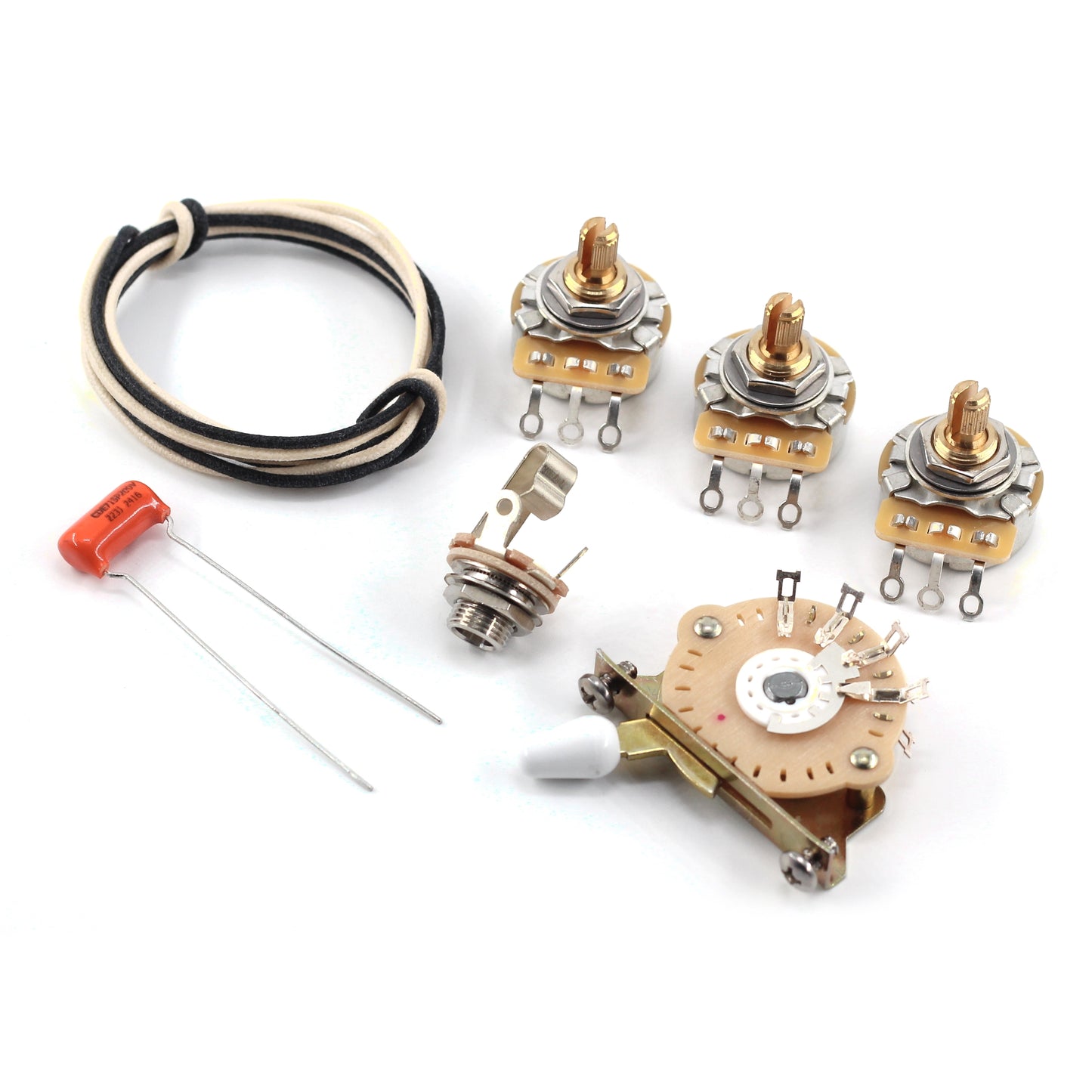

- What’s Included -

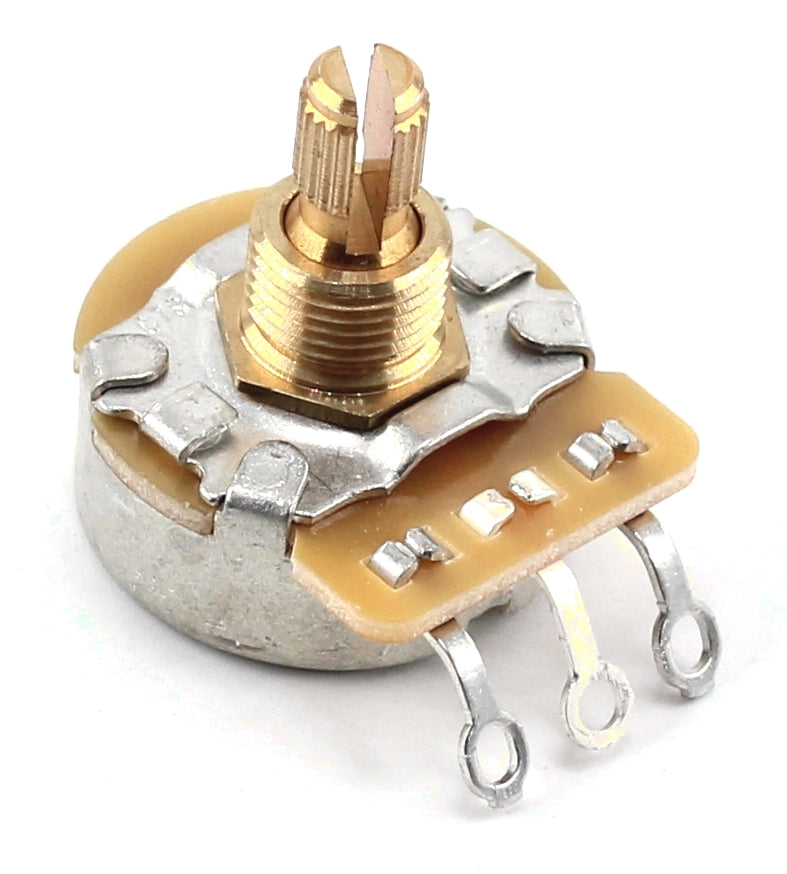

• 3x TAOT Custom CTS 250K Pot, 1/4” Short Split Shaft, Audio Taper, 10% Tolerance

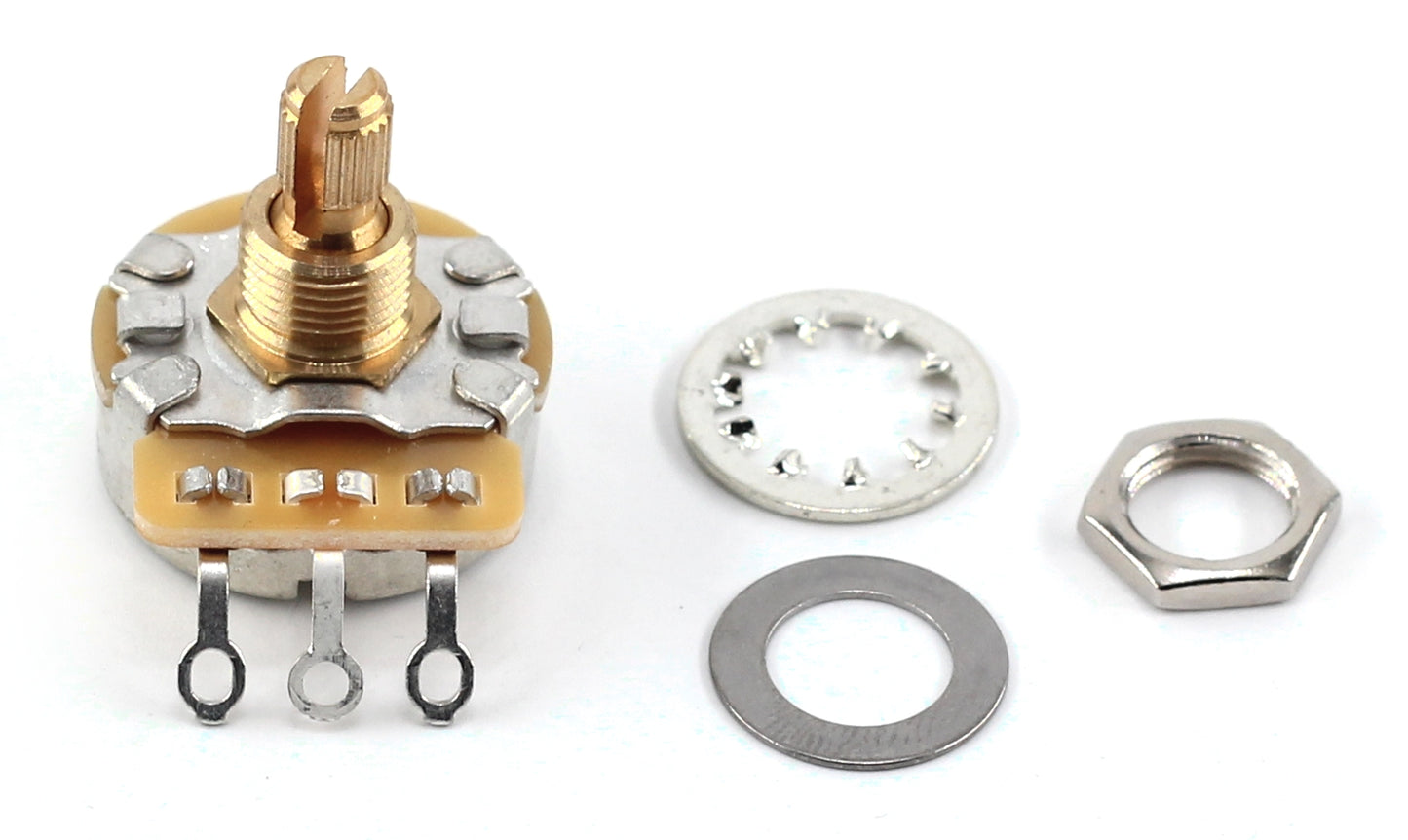

• Each pot comes with hardware - 1 nut, a dress washer, and lock washer - Everything you need to get the perfect, secure fit!

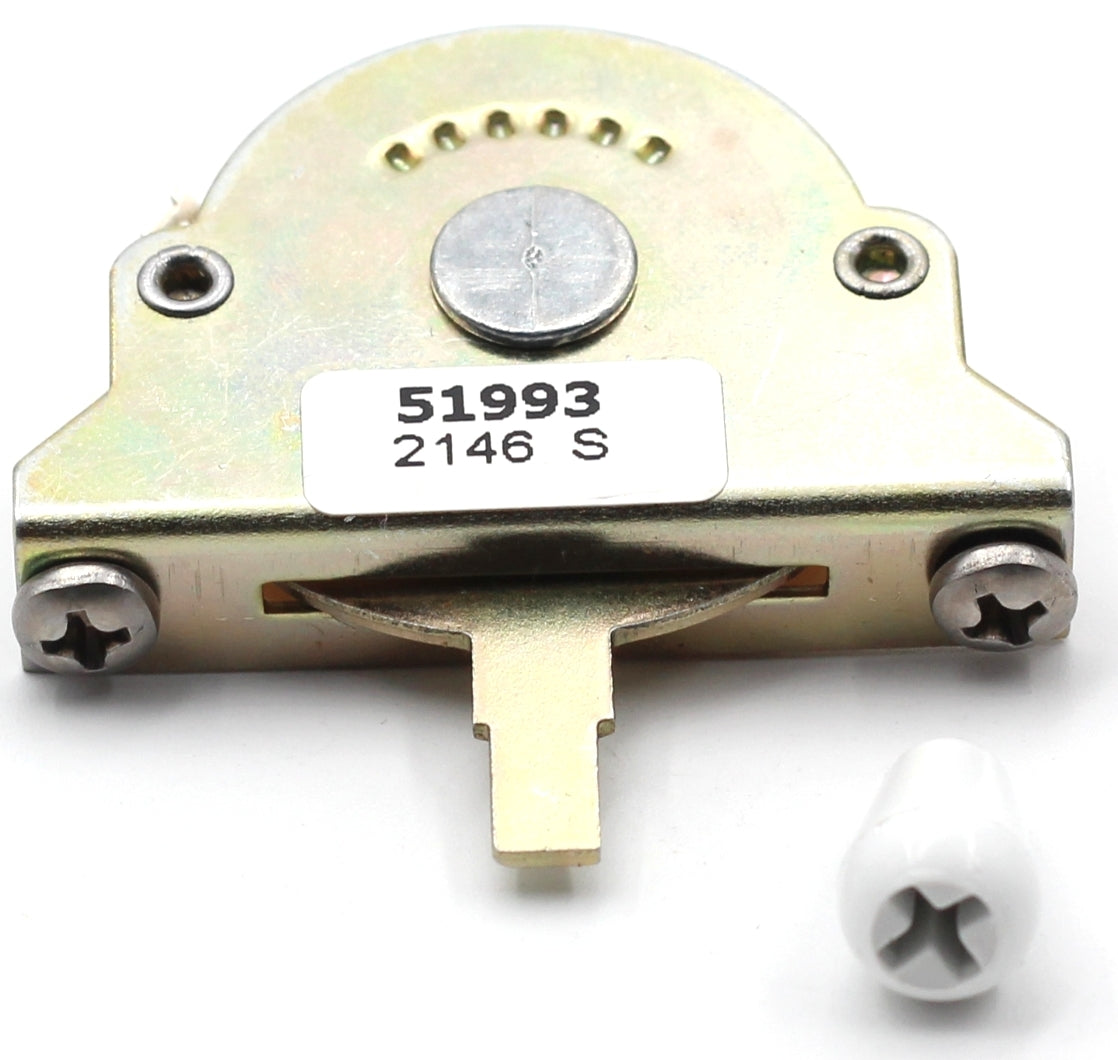

• 1x Oak Grigsby 5-Way Blade Switch for Stratocaster With Mounting Screws

• 1x White Blade Switch Tip

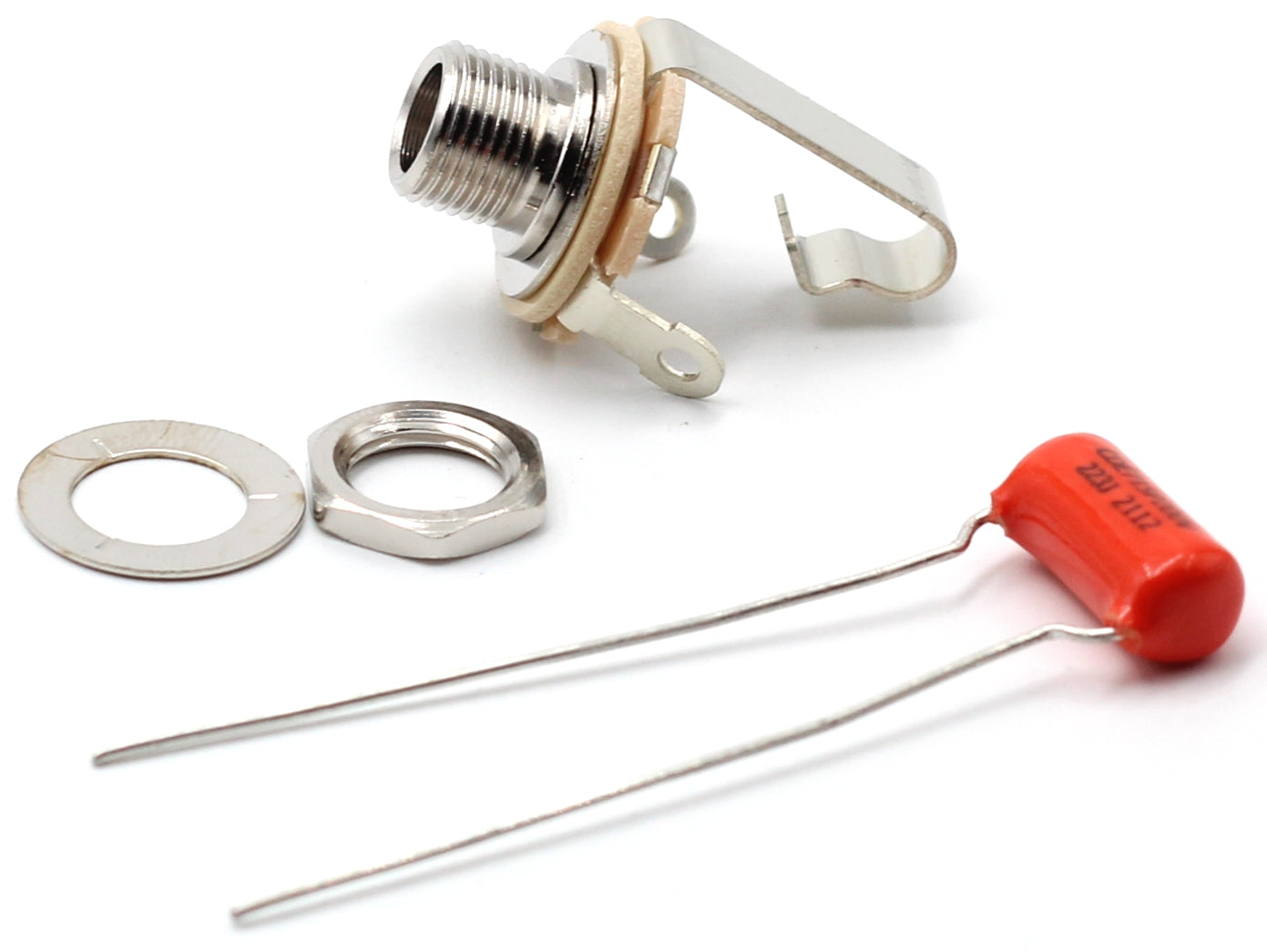

• 1x Switchcraft Nickel #11 1/4" Input/Output Mono Jack w/ Mounting Hardware

• 1x Orange Drop .022uf 200V Guitar Tone Capacitor 5% Tolerance 715P Series

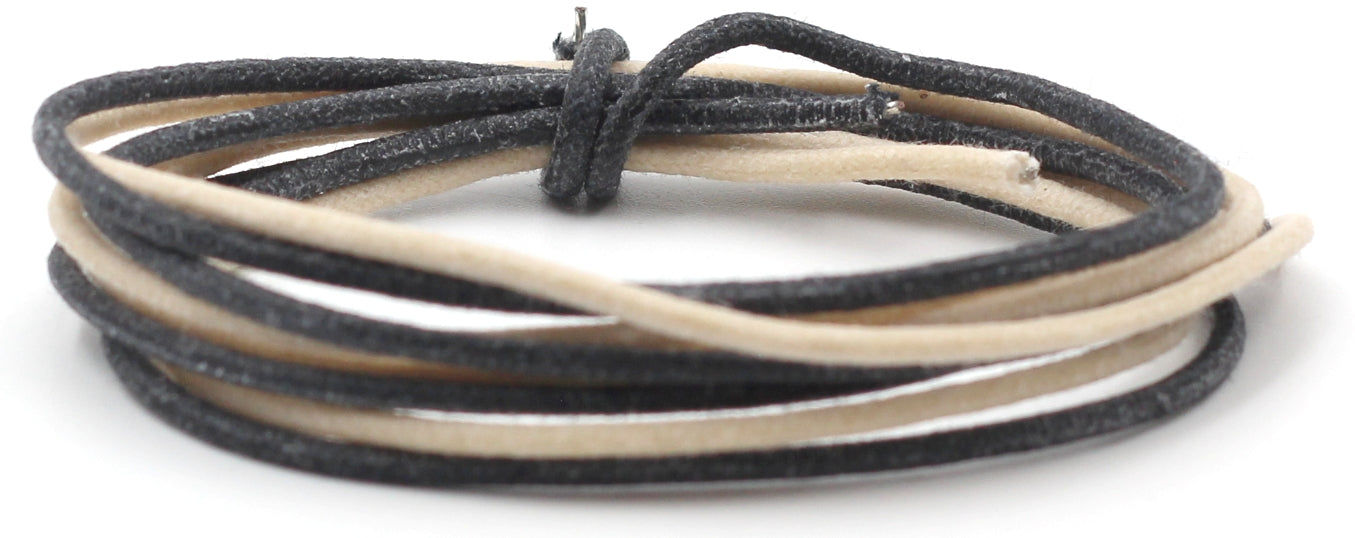

• 2’ (2 feet) Black Gavitt Guitar Wire Cloth-covered Vintage-style Push Back 22awg Pre-tinned

• 2’ (2 feet) White Gavitt Guitar Wire Cloth-covered Vintage-style Push Back 22awg Pre-tinned

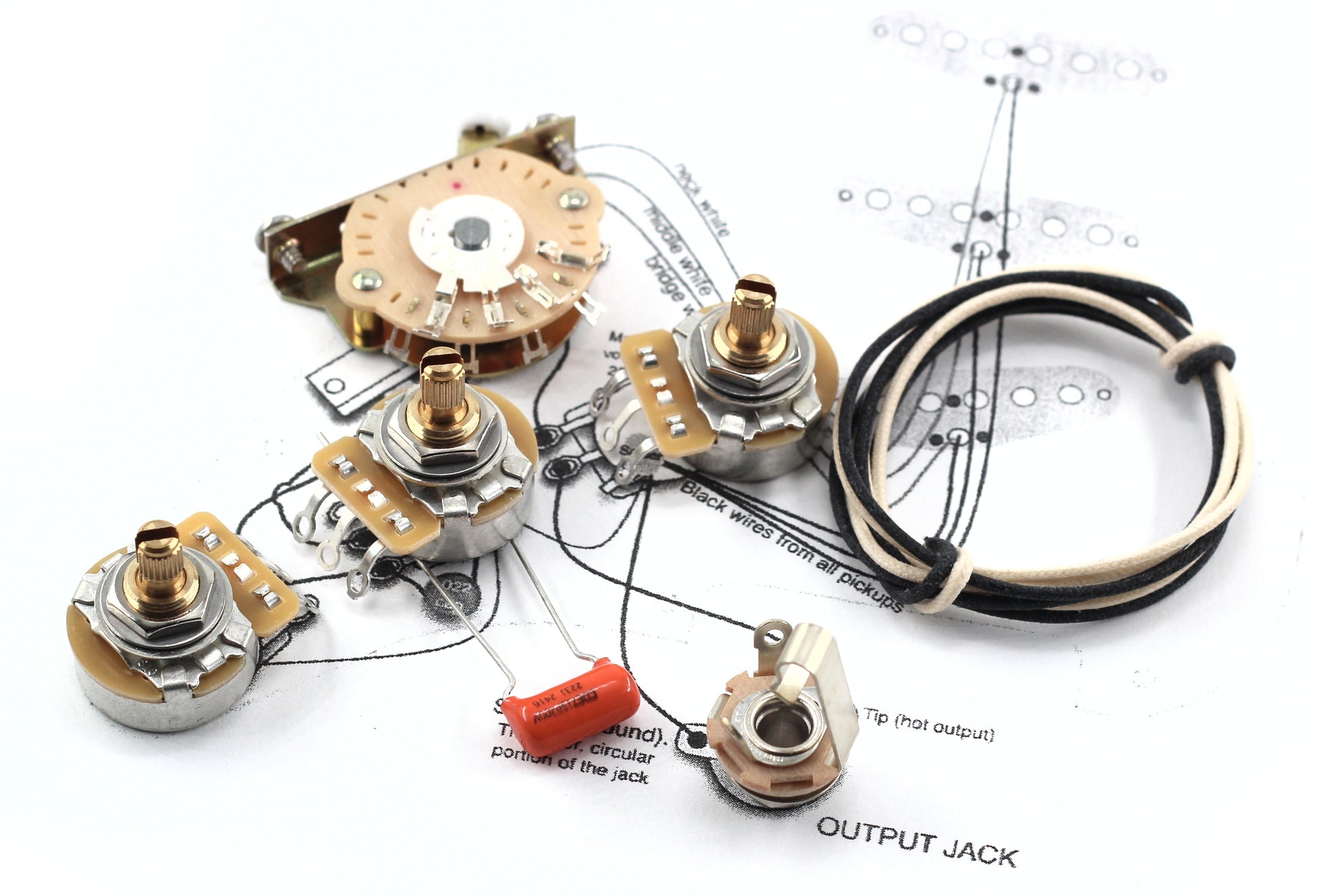

• 1x Wiring Diagram

- Specifications -

Potentiometer:

• 250K Ohms (Ω) Resistance - Ideal for single coil pickups to tame harsh high sounds.

• ±10% Tolerance - Ensures you get the intended tone you’re expecting from your pot.

• Audio Taper - Mimics how humans perceive sound for a smooth transition throughout the entire range of motion.

• Low friction rotation - Perfect for swells and quick adjustments.

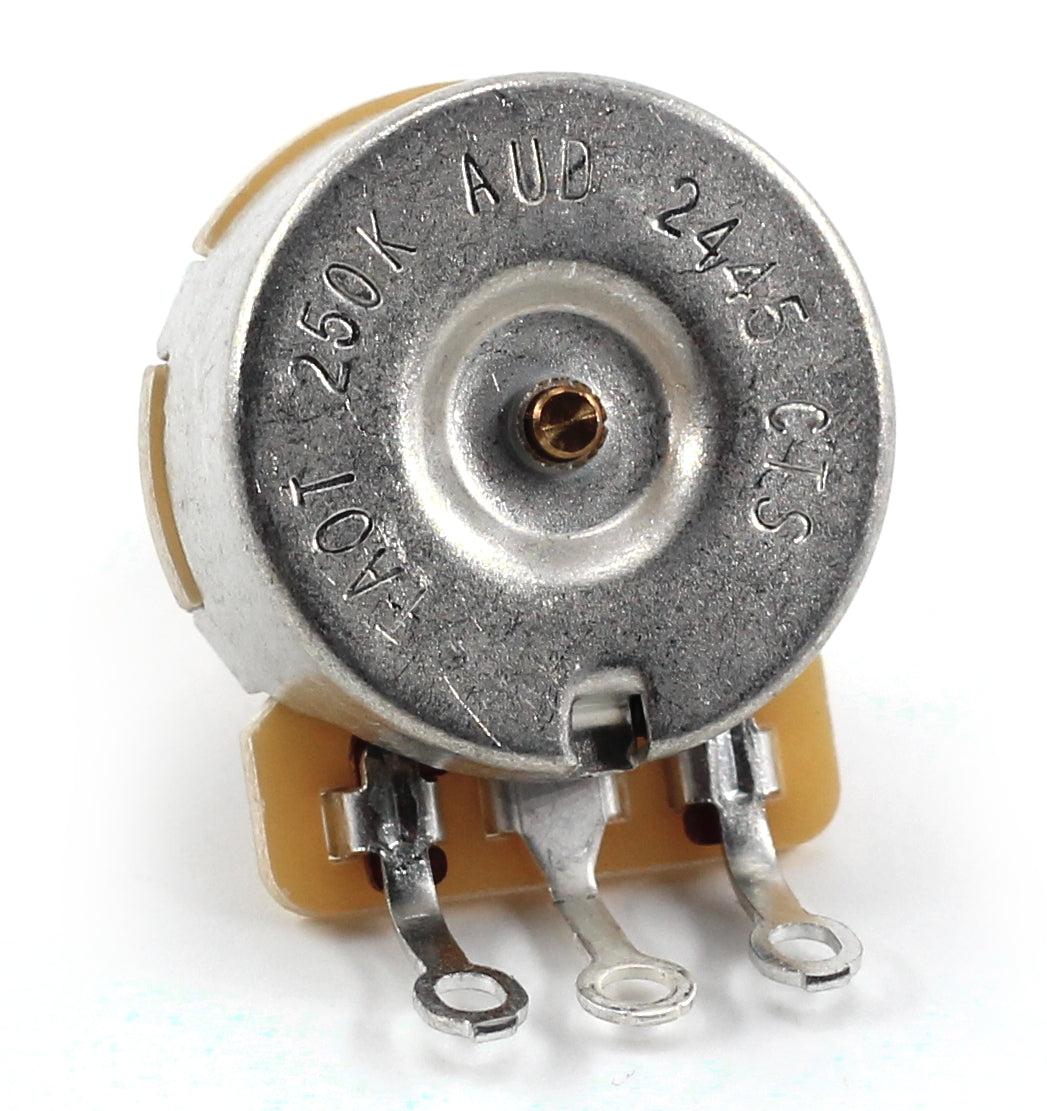

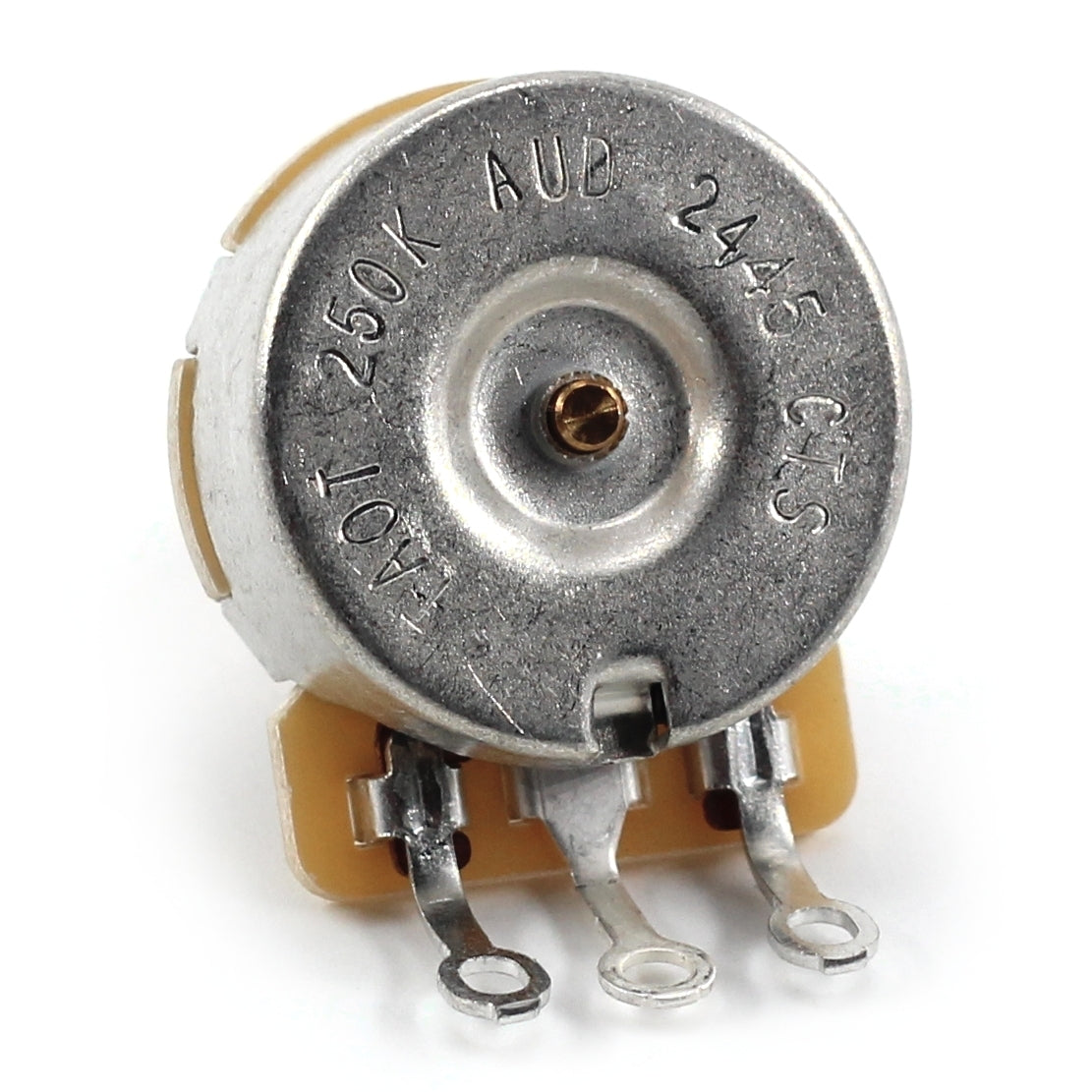

• Crystal Clear Stamping - Know exactly what your pot is at a glance! No need to meter or decipher complicated part numbers to know what you’re working with.

• Split, 24-tooth, Fine knurled, .236" (6mm) diameter shaft - Standard fit for US knobs. Import knobs will not fit!

• Solid brass 1/4" high (short shaft) bushing - Will fit most control plate setups (Teles, Jazz Bass, P-Bass, etc.).

• Compatible Mounting Hole - Requires 3/8" (9.5mm) diameter mounting hole.

Output Jack:

• Simple design - The straightforward design facilitates easy repairs and maintenance, resulting in a longer lifespan compared to other jacks.

• Nickel plated - Ensures strong and consistent signal quality.

• 3/8"-32 x .28” (>1/4") threading - Fits standard US-made guitar and amp jack plates and mounts.

Blade Switch:

• 5-Way pickup selection - Excellent for Stratocasters, any guitar with a three pickup setup, and even some HH setups!

• 1 & 5/8" (41mm) between screwholes - Standard size for US-made guitars and will fit some metric-fit guitars!

• 1 & 3/8" compartment clearance requirement

Capacitor:

• .022 microfarad capacitance - A mild capacitance value to help chill only the harshest highs without modifying your guitar’s melodious mids.

• 200V voltage rating - Overkill for guitar circuits, but provides peace of mind for long-lasting performance.

• ±5% Tolerance - Ensures you get the intended tone you’re expecting from your cap.

• Compact cylindrical design - Allows the cap to fit into nearly all control cavities or configurations.

• Tinned copper-clad steel leads - Extremely durable and flexible to adjust to any setup.

Gavitt Cloth Wire:

• Push-back cloth insulation - The two cloth insulators - an inner Celanese layer and lightly waxed outer cotton layer - can be pushed back with your fingers alone. No stripping or special tools needed!

• Completely pre-tinned length - The entire length of the conductor is pre-tinned. No special preparation needed; anywhere you cut is ready to solder!

• Stranded conductive wire - The stranded build of the copper wire makes it extremely easy to bend and manipulate. You’ll never have to fight stiff wire!
