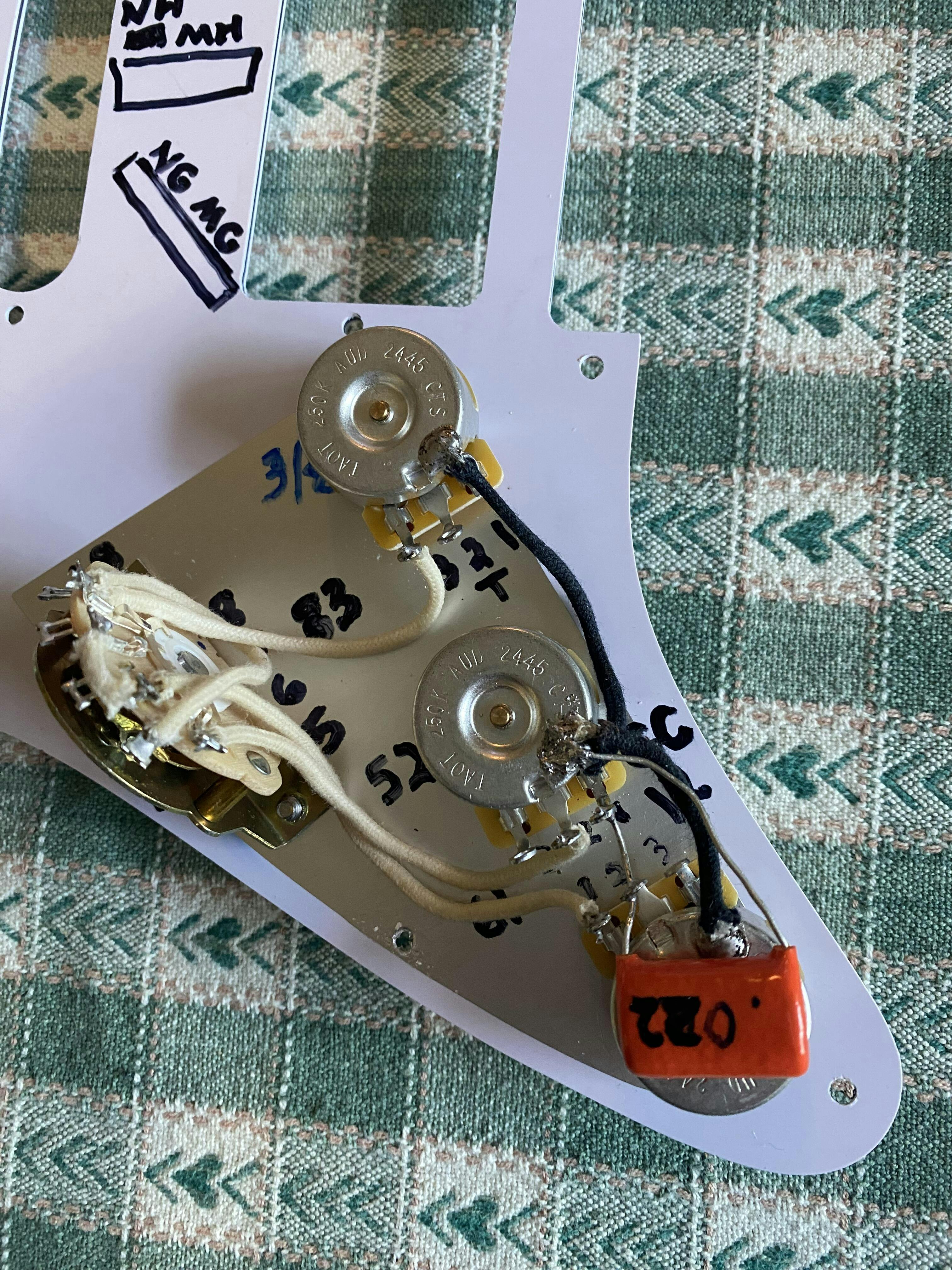

The Art of Tone Stratocaster® Wiring Kit - Oak Grigsby 5-Way Switch, .047uF Orange Drop Guitar Capacitor

We've gathered up the best in name-brand guitar electronics to provide you with a high quality, ready-to-go kit to upgrade your Stratocaster! This kit should accommodate any US-made Stratocaster® or triple single-coil pickup setup with 5-way blade switch.

- Features -

• Legendary names -  We offer high quality parts to ensure your guitar will sing for years to come! CTS, Gavitt, Oak Grigsby, and Orange Drop gathered together to provide the ultimate kit!

• CTS 250k pots @ 10% tolerance - A trusted name in sound at a tighter tolerance gives you consistent sound you can rely on!

• All the wire you need - Includes everything you need to connect your parts easily and safely. Tinning on all the wire makes soldering a breeze.

• All hardware included - No need to run to the hardware store!

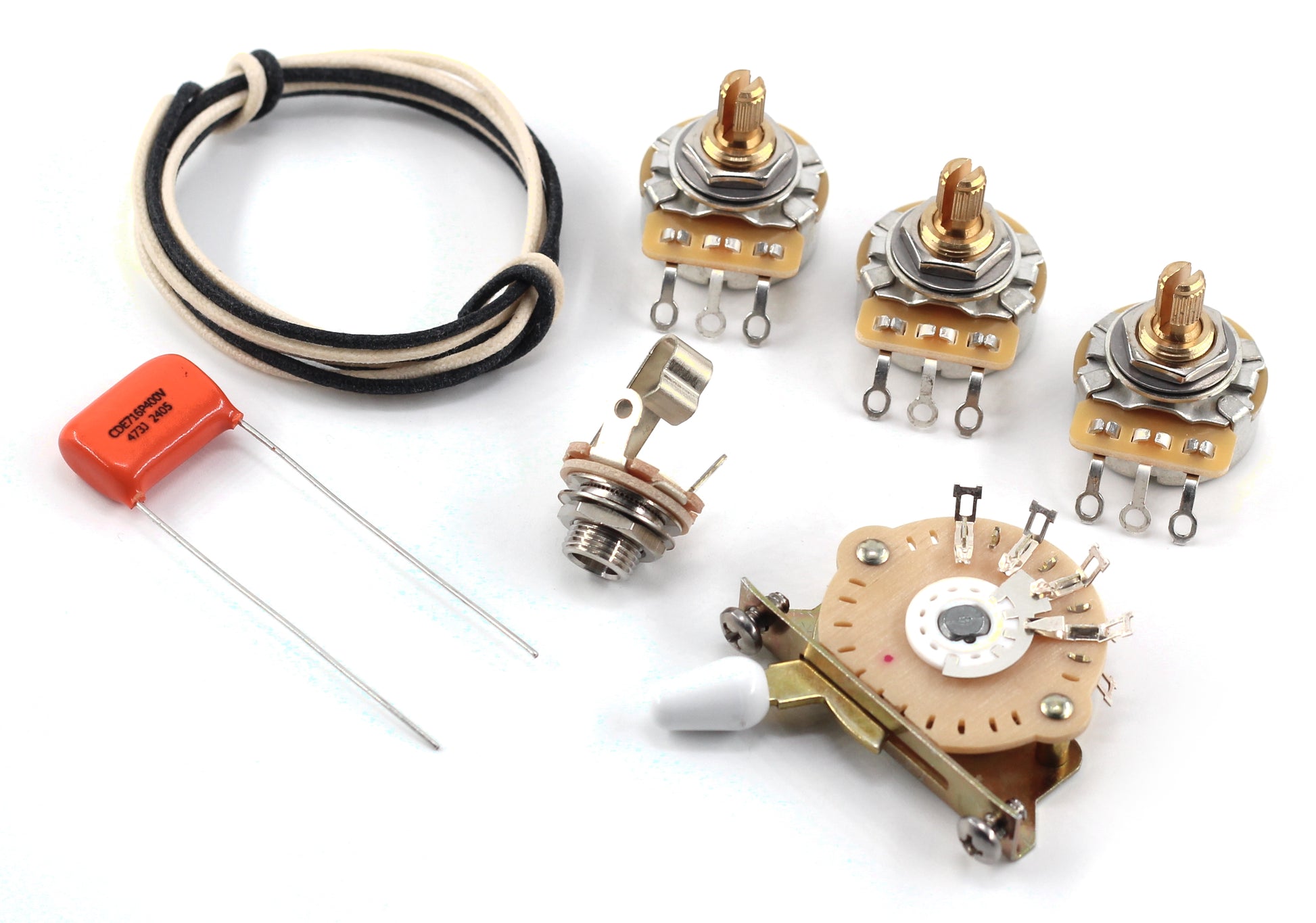

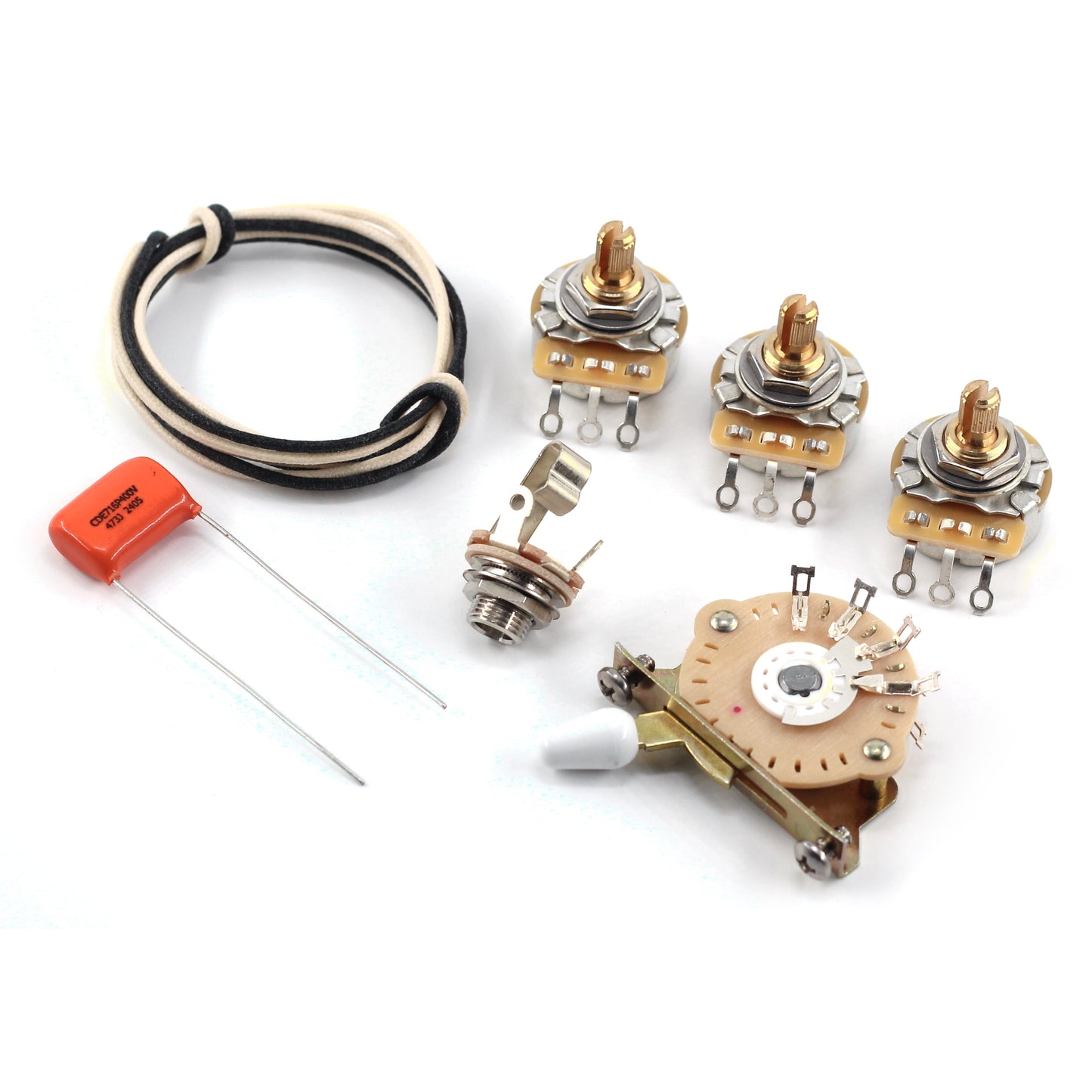

- What's Included -

• 3x CTS 250K Pot, 1/4" Short Split Shaft, Audio Taper, 10% Tolerance

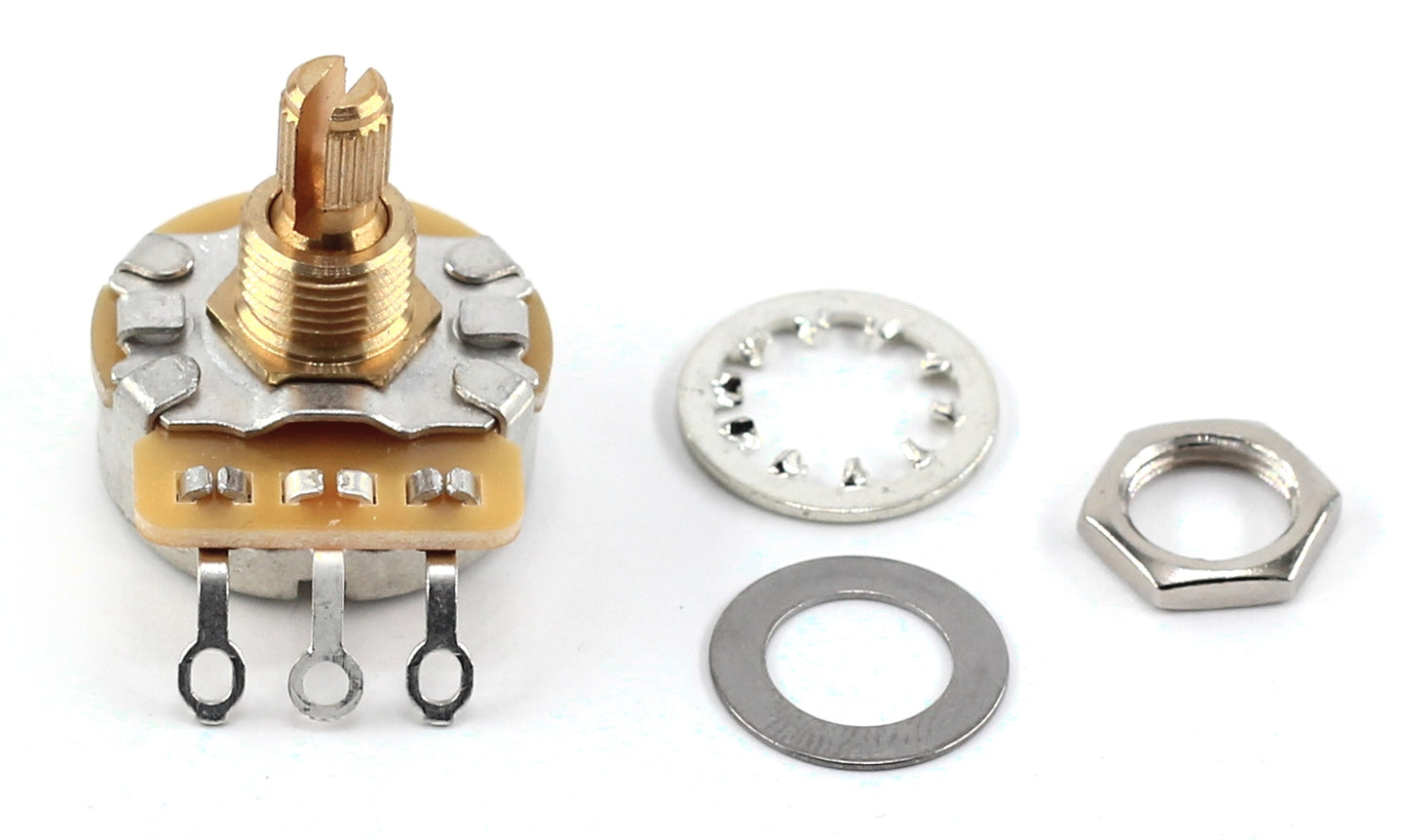

• Each pot comes with hardware - 1 nut, a dress washer, and lock washer - Everything you need to get the perfect, secure fit!

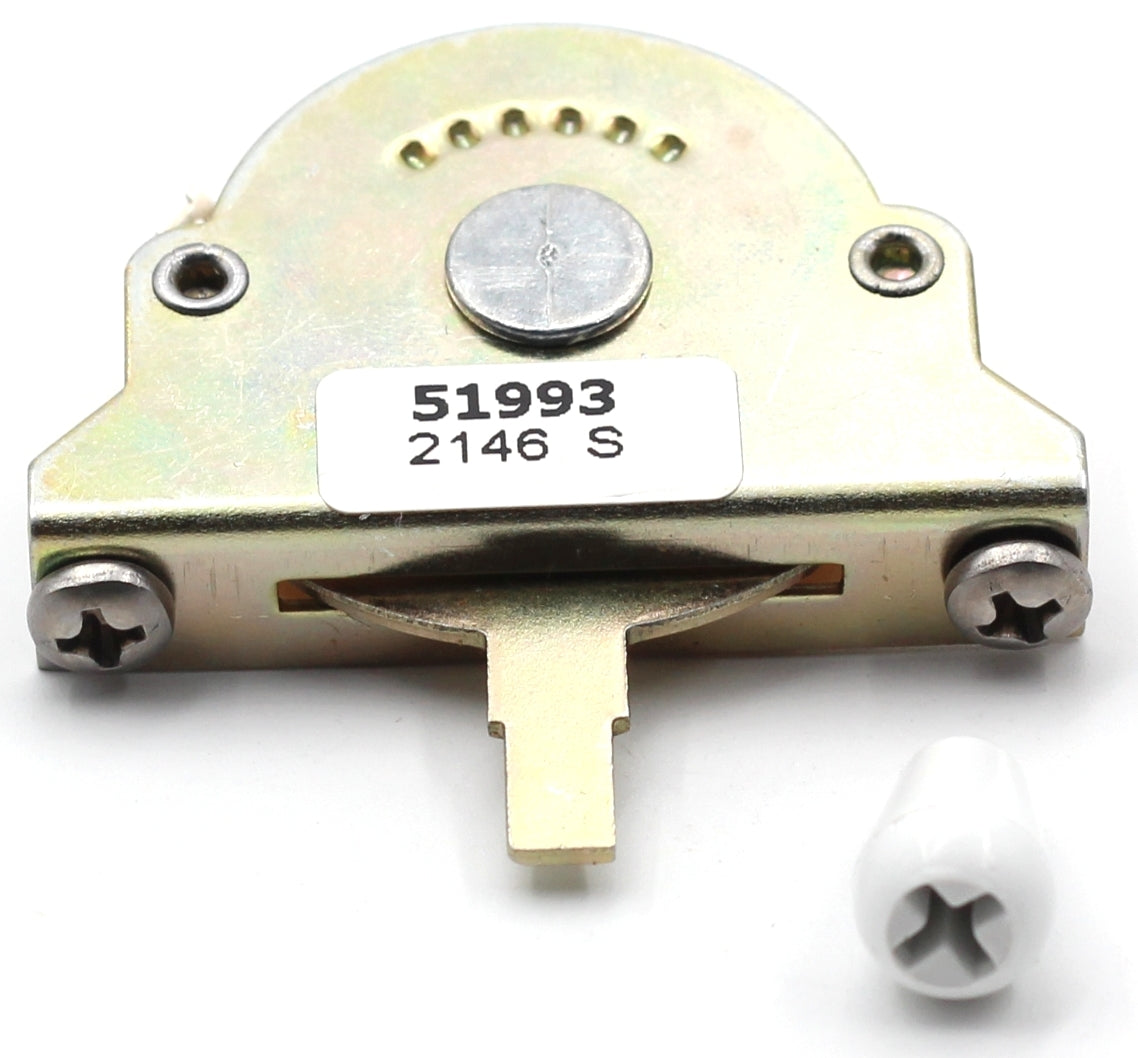

• 1x Oak Grigsby 5-Way Blade Switch for Stratocaster With Mounting Screws

• 1x White Blade Switch Tip

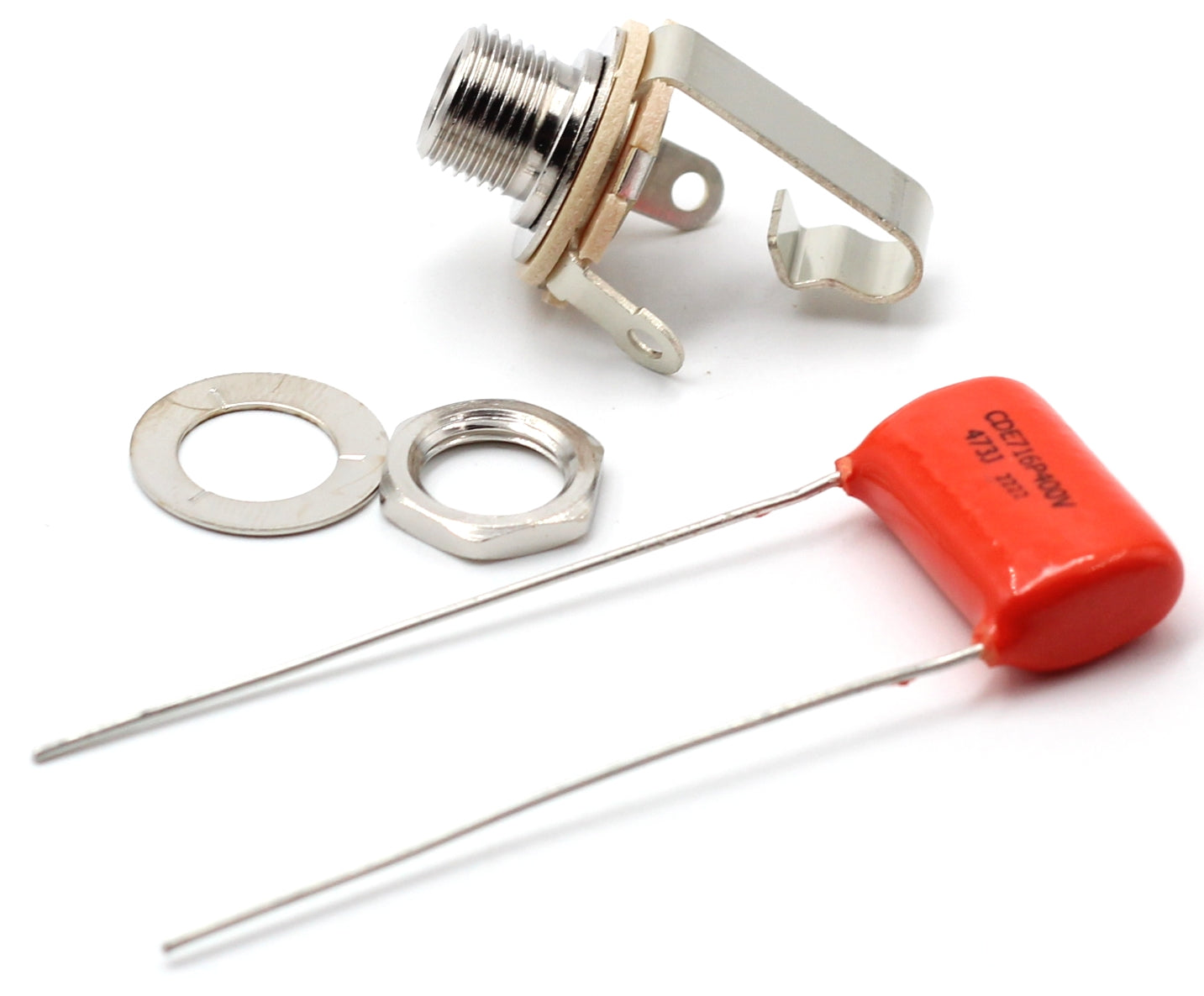

• 1x Switchcraft Nickel #11 1/4" Input/Output Mono Jack w/ Mounting Hardware

• 1x Orange Drop .047uf 400V Guitar Tone Capacitor 5% Tolerance 716P Series

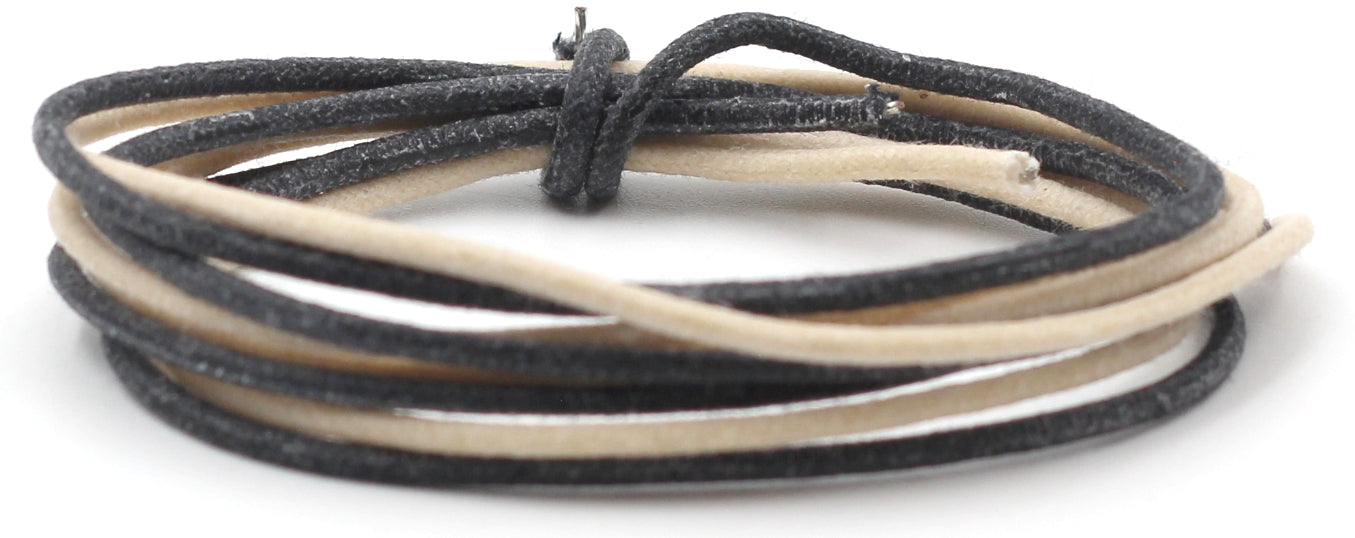

• 2' (2 feet) Black Gavitt Guitar Wire Cloth-covered Vintage-style Push Back 22awg Pre-tinned

• 2' (2 feet) White Gavitt Guitar Wire Cloth-covered Vintage-style Push Back 22awg Pre-tinned

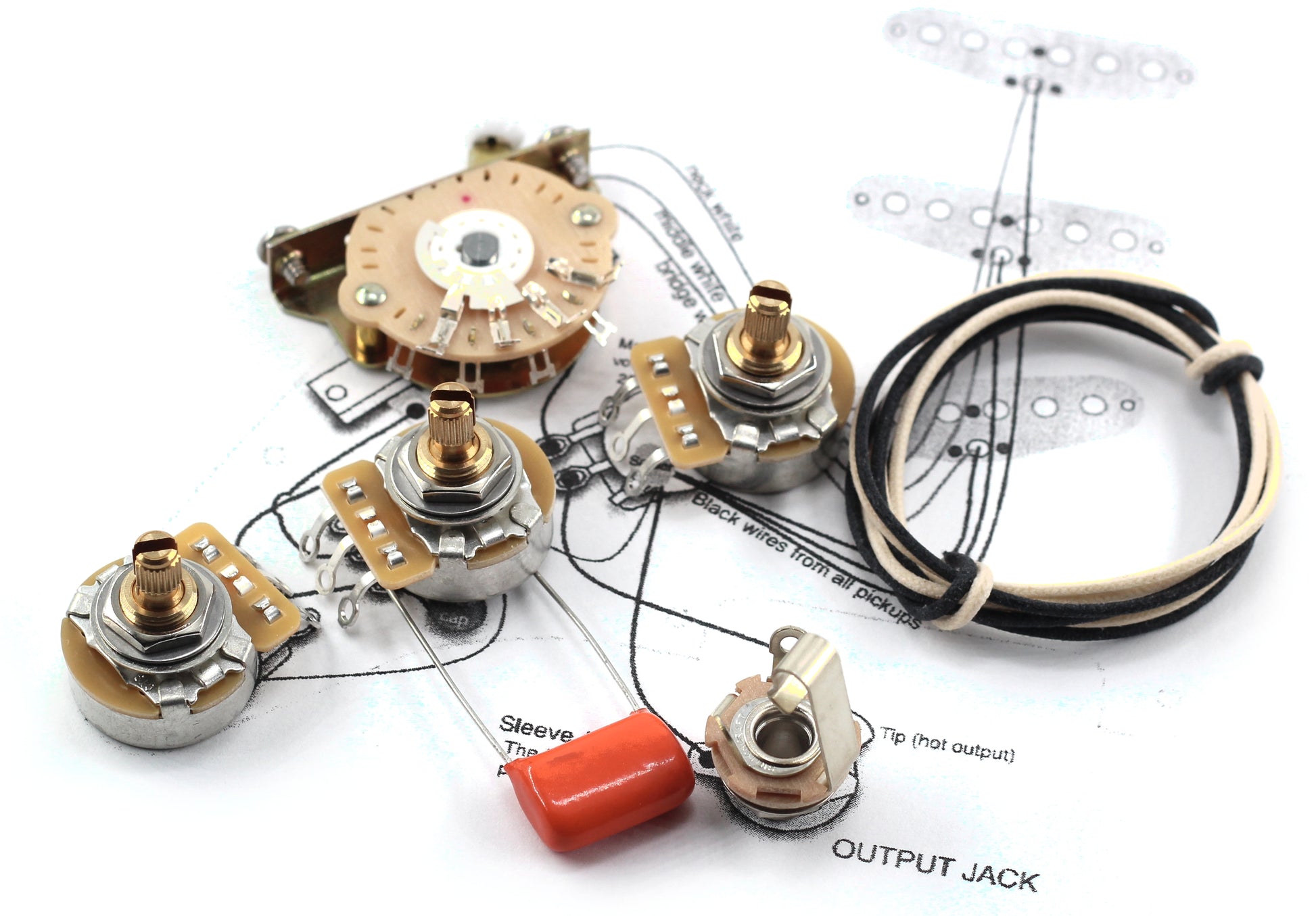

• 1x Wiring Diagram

- Specifications -

Potentiometer:

• 250K Ohms (Ω) Resistance - Ideal for single coil pickups to tame harsh high sounds.

• ±10% Tolerance - Ensures you get the intended tone you're expecting from your pot.

• Audio Taper - Mimics how humans perceive sound for a smooth transition throughout the entire range of motion.

• Low friction rotation - Perfect for swells and quick adjustments.

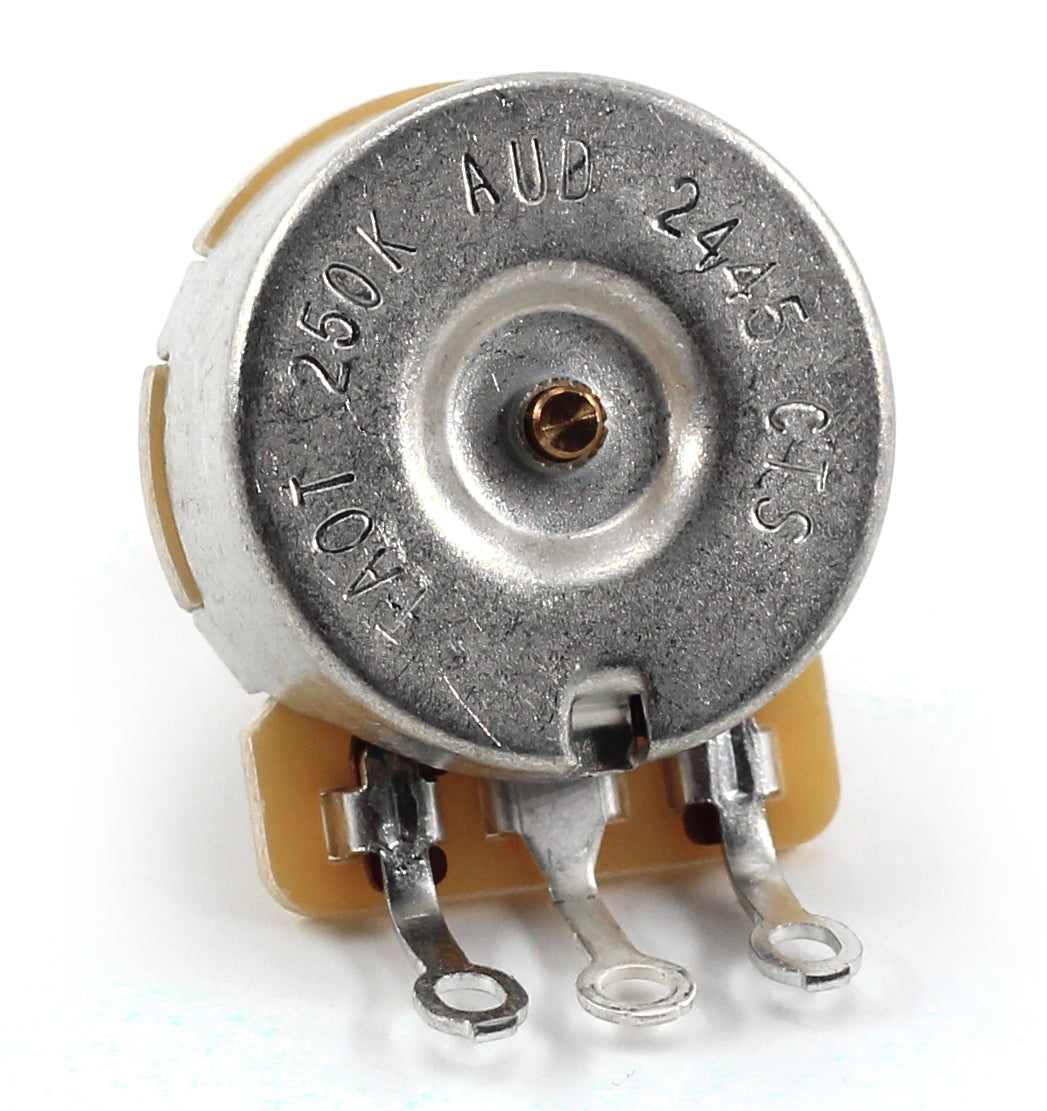

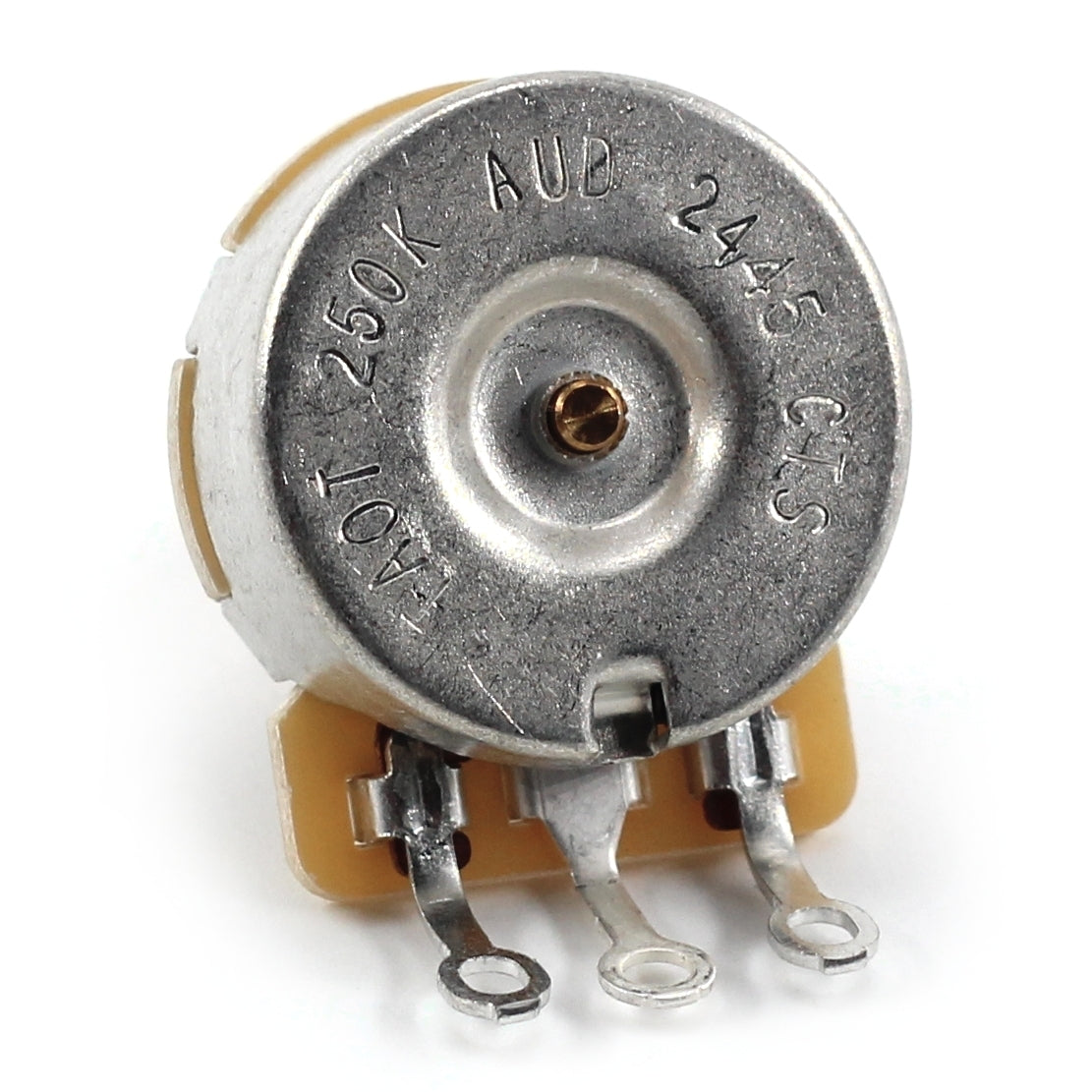

• Crystal Clear Stamping - Know exactly what your pot is at a glance! No need to meter or decipher complicated part numbers to know what you’re working with.

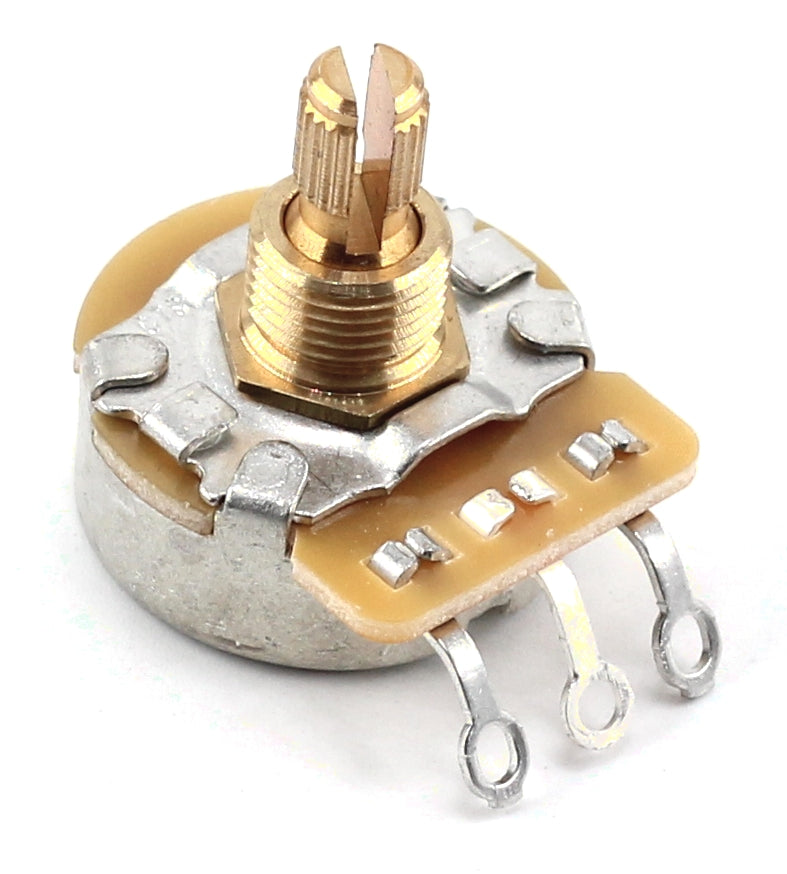

• Split, 24-tooth, Fine knurled, .235" (~5.95mm) diameter shaft - Standard fit for US knobs. Import knobs will not fit!

• Solid brass 1/4" high (short shaft) bushing - Will fit most control plate setups (Teles, Jazz Bass, P-Bass, etc.).

• Compatible Mounting Hole - Requires 3/8" (9.5mm) diameter mounting hole.

Output Jack:

• Simple design - The straightforward design facilitates easy repairs and maintenance, resulting in a longer lifespan compared to other jacks.

• Nickel plated - Ensures strong and consistent signal quality.

• 3/8"-32 x .28" (>1/4") threading - Fits standard US-made guitar and amp jack plates and mounts.

Blade Switch:

• 5-Way pickup selection - Excellent for Stratocasters, any guitar with a three pickup setup, and even some HH setups!

• 1 & 5/8" (41mm) between screwholes - Standard size for US-made guitars and will fit some metric-fit guitars!

• 1 & 3/8" compartment clearance requirement

Capacitor:

• .047 microfarad capacitance - A strong capacitance to tame the treble of either a single-coil or high-output pickup.

• 400V voltage rating - Overkill for guitar circuits, but provides peace of mind for long-lasting performance.

• ±5% Tolerance - Ensures you get the intended tone you're expecting from your cap.

• Compact flattened design - Allows the cap to fit into nearly all control cavities or configurations.

• Tinned copper leads - The best conductive material for your sound made incredibly easy to solder to any setup.

• 2" Tinned copper leads - Long leads will help accommodate any wiring setup, big or small!

Gavitt Cloth Wire:

• Push-back cloth insulation - The two cloth insulators - an inner Celanese layer and lightly waxed outer cotton layer - can be pushed back with your fingers alone. No stripping or special tools needed!

• Completely pre-tinned length - The entire length of the conductor is pre-tinned. No special preparation needed; anywhere you cut is ready to solder!

• Stranded conductive wire - The stranded build of the copper wire makes it extremely easy to bend and manipulate. You?ll never have to fight stiff wire!

Before Purchasing

• Make sure your guitar has compatible mounting holes - If you are using import guitar, you will need to drill or ream mounting holes wider to fit these pots. Import guitars (e.g., Epiphone, Ibanez, PRS SE models, ESP) typically have metric holes around 1/4" in diameter, while these pots require 3/8" diameter holes.
