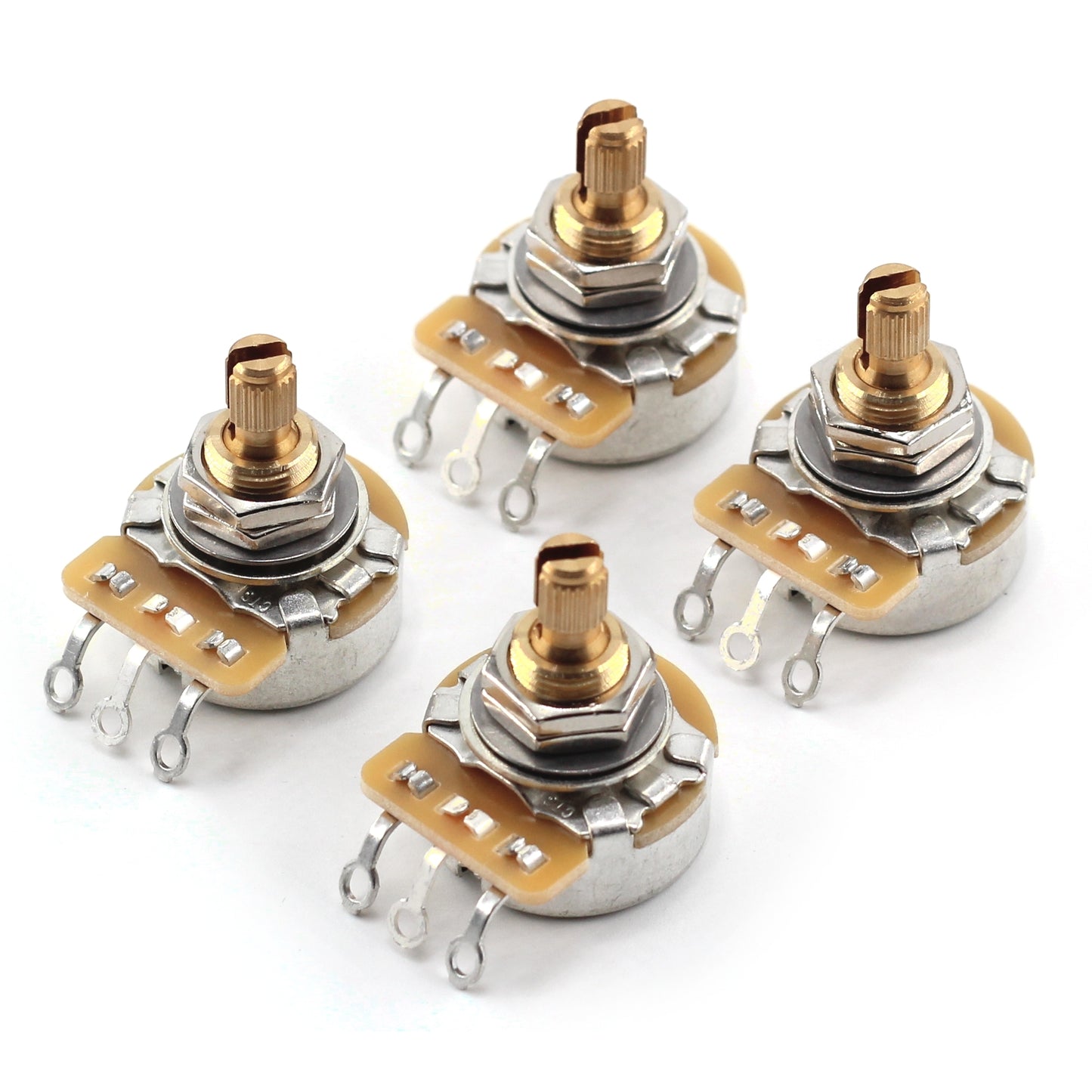

CTS TAOT Custom 525K Potentiometer - SHORT SPLIT Knurled Shaft - Audio Taper - 5% Tolerance - 500K-550K

We are extremely proud to offer our own custom branded and spec'd pots manufactured by CTS.  These are identical in construction to CTS's high quality 450G series pots, but we spec'd them at 525K, and made some minor tweaks to the specifications to make them easier to use and install.

At 5% tolerance, the value of these pots can range from ~500K to ~550K. We can guarantee a consistent 500k+ tone from every pot! We're very pleased with these pots and think you will be too! These pots are specifically stamped to make it clear what resistance and taper they are without any external reference to complex manufacturer numbers or additional metering. Typically used for Gibson guitars (SGs, Les Pauls, Explorers, Firebirds), but can be used for Fender guitars with humbucker setups (HSS or HH setups). These audio taper pots are suitable for both tone and volume controls.

Key Features

• 525k Ohm (Ω) resistance - Perfect for getting an extra little kick out of your humbucker pickups and making the high end sing.

• ±5% Tolerance - Hand-metered to give you the ultimate in consistency and quality!

• Audio Taper - Mimics how humans perceive sound for a smooth transition throughout the entire range of motion.

• Standard friction rotation - Ensures your settings stay put for enduring an active performance onstage or making smaller, gentler adjustments.

• Crystal Clear Stamping - Know exactly what your pot is at a glance! No need to meter or decipher complicated part numbers to know what you’re working with.

Physical Fit

• Split, 24-tooth, Fine knurled, .236" (6mm) diameter shaft - Standard fit for US knobs. Import knobs will not fit!

• Short Shaft 3/8" (9.5mm) length solid brass bushing - Will fit all control plate setups and thinner top woods (Teles, Strats, SGs, some thinner Les Pauls)

• Each pot comes with hardware - 2 nuts, a dress washer, and lock washer. Everything you need to get the perfect, secure fit!

• Compatible Mounting Hole - Requires 3/8" (9.5mm) diameter mounting hole.

Before Purchasing

• Make sure your guitar has compatible mounting holes - If you are using import guitar, you will need to drill or ream mounting holes wider to fit these pots. Import guitars (e.g., Epiphone, Ibanez, PRS SE models, ESP) typically have metric holes around 1/4" in diameter, while these pots require 3/8" diameter holes.

• Note the bushing height - These 3/8" pots are short shaft but are slightly taller than some 1/4" bushing 250k pots, which enhances their compatibility with various guitar models. We include an extra hex nut with each pot to help you dial in the perfect height during installation.
